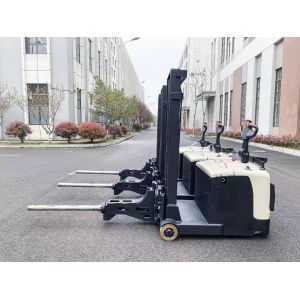

Overall Width 990mm Electric Pallet Stacker With Heavy Duty

Product Categories

ANHUI YOUNGLIFT INTELLIGENT EQUIPMENT CO.,LTD.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: Overall Width 990mm Electric Pallet Stacker With Heavy Duty
Brand: YONGJIELI
Price: 2470.00 USD

Brand Name : YONGJIELI

Model Number : CDD05B

Certification : CE

Place of Origin : ANHUI, CHINA

MOQ : 1 SETS

Price : USD2470.00 - USD4700.00

Payment Terms : L/C, T/T, D/A, D/P, Western Union

Supply Ability : 50 SETS PER MONTH

Delivery Time : 10 WORK DAYS

Packaging Details : EXPORT PACKING

Power type : Battery

Tire type : Polyurethane

Mast type : Duplex mast

Steering type : Electronic steering

Parking brake type : Electromagnetic braking

Name : Electric Pallet Stacker

Contact Now

Non-standard Air Shaft Rated Lifting Load 500 KG Electric Pallet Stacker With Heavy Duty

Model		CDD05B		CDD15B
Power type		Battery
Operation mode		Standing type
Rated load	kg	500		1500
Load center distance	mm	500
Installation level and form		2A		2A
Tire type		Polyurethane
Tire specification (front wheel)	mm	Φ210*85
Tire specification (drive wheel)	mm	Φ230*75
Tire specification (multidirectional wheel)	mm	Φ130*55
Number of tires (front/ rear) (X= drive wheel)		2/1X+2
Mast type		Duplex mast
Mast tilt angle (forward tilt/ backward tilt) (optional)	°	3/5
Standard lifting height	mm	2500
Free lifting height	mm	/
Height of mast closed	mm	1830
Height of mast open (incl. blocking rack)	mm	3485
Min. ground clearance	mm	70
Overall length (pedal deployment/ retraction)	mm	3200/2695		3300/2795
Wheelbase	mm	1200		1300
Front overhang distance	mm	145
Overall width (front/ rear)	mm	990/ 900
Track width (front/ rear)	mm	895/ 684
Fork specifications	mm	107010035
Outside distance of fork	mm	240-700
Channel width (1000*1200 tray) (pedal unfold/ fold)	mm	3420/ 3000		3510/ 3095
Turning radius (pedal unfold/ fold)	mm	1920/ 1500		2010/ 1595
Walking speed (full load/ no load)	km/h	4.0/5.0
Lifting speed (full load/ no load)	mm/s	80/150		77/150
Descent speed (full load/ no load)	mm/s	160/105		200/105
Climbing gradient (S2-5) (full load/ no load)	%	6/8		5/8
Drive motor power	kw	1.5
Lifting motor power	kw	2.2	3
Battery (voltage/ capacity)	v/ah	24/210
Battery weight	kg	200
Vehicle weight (incl. battery)	kg	1815	1885
Steering type		Electronic steering
Parking brake type		Electromagnetic braking
Battery replacement method		Lifting type
